Mower Fitment
Find the MowDome that fits your mower
Answer two quick questions, then pick your make and model. If your model is on the list, the fit is already verified — no measuring needed.
1
Start here — every MowDome needs these two
No exceptions, on either path.

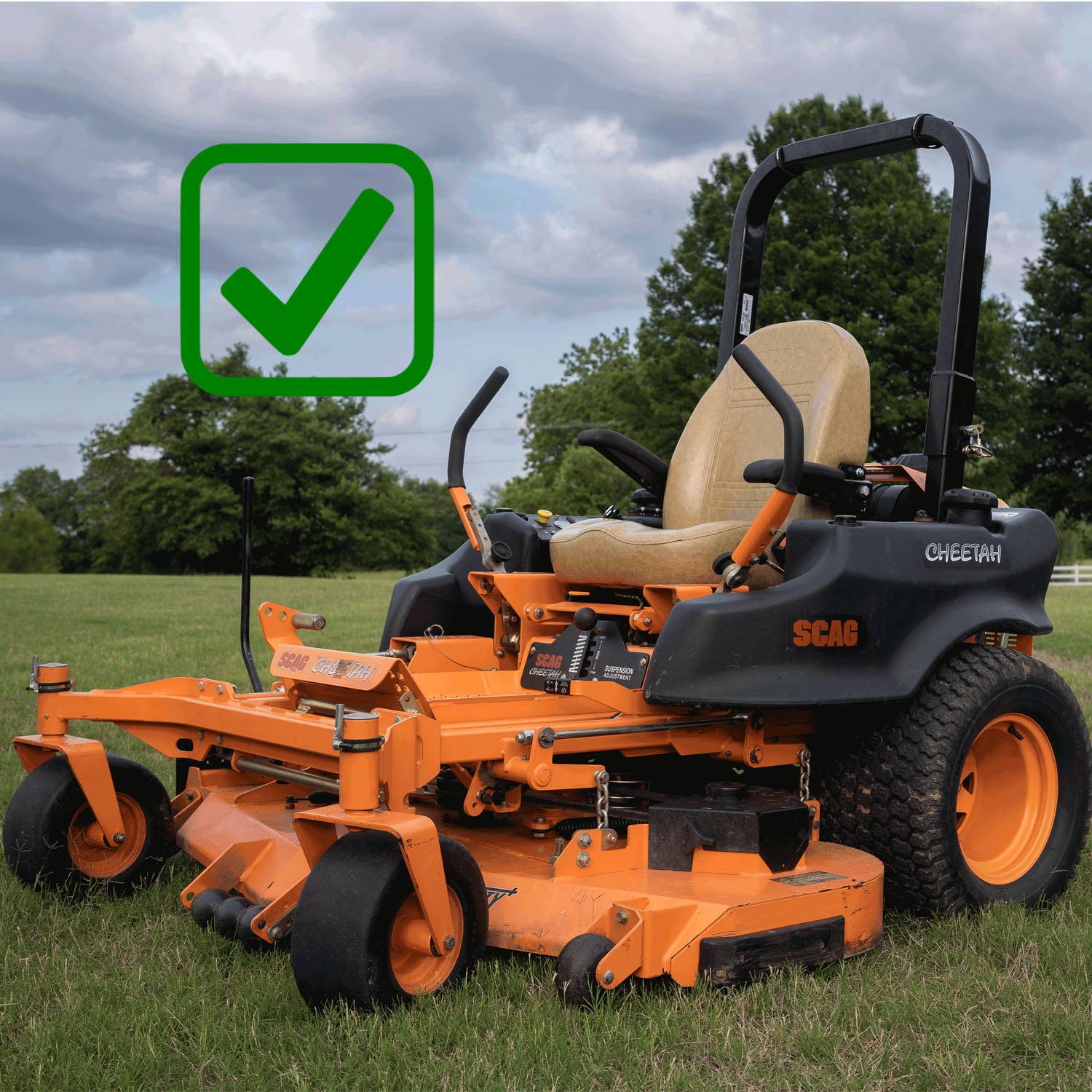

Is it a zero-turn mower?
Lap-bar steering, turns on a dime. Lawn and garden tractors are not compatible.

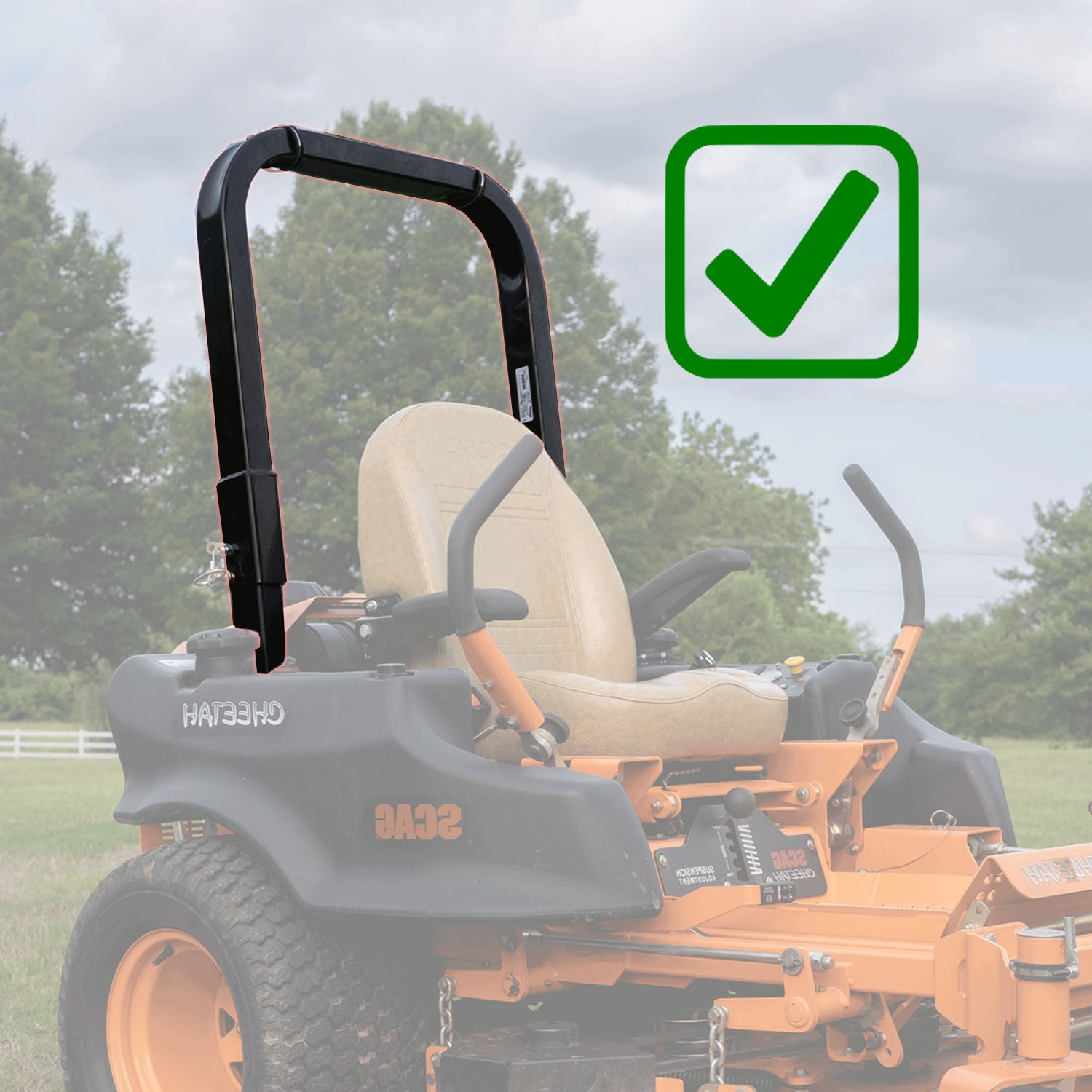

Does it have a factory roll bar (ROPS)?
The MowDome clamps to the factory ROPS behind the seat. No roll bar, no mount.
The MowDome won't fit this mower.
Both requirements met — now pick your path below.
2
Two ways to get the right kit
Answer the two questions above to unlock your options.
Recommended path
Verified fit · no measuring · ships with the right mounts
Select your make and model
We've measured these mowers ourselves. Choose yours and we'll match the exact kit.
Make
Model
Verified fit
Your kit ships with the correct spindle and roll bar mounts for this model. Nothing to measure.
View product details
Ships from Tennessee · 30-day returns
Don't see your model?
Ask our team
Tell us what you ride and we'll check it against our fit data — usually same business day. It's the fastest way to be sure.
Second path
Universal kit — measure it yourself
Fits any zero-turn with a factory roll bar once three measurements check out. You'll pick your mount sizes on the product page, so measure carefully.
Spindle width
Outer edge to outer edge, across the front caster spindle tops
Spindle diameter
Edge to edge on one front caster spindle
Roll bar size
Long side × short side
How to measure for the Universal kit
Only needed if your make and model isn't listed above. Three measurements — a tape measure is all it takes.

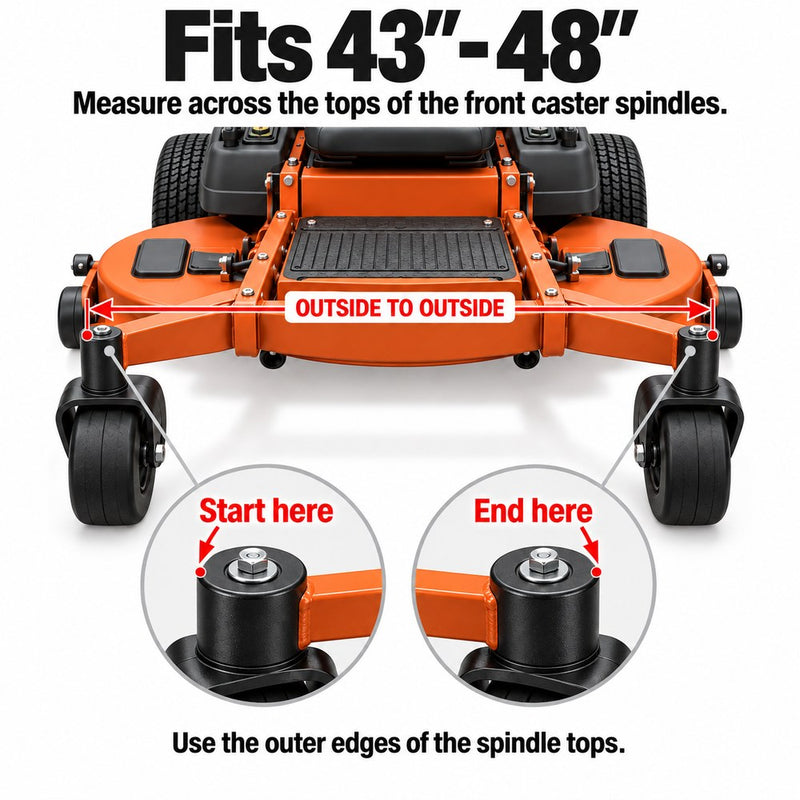

Measurement 01

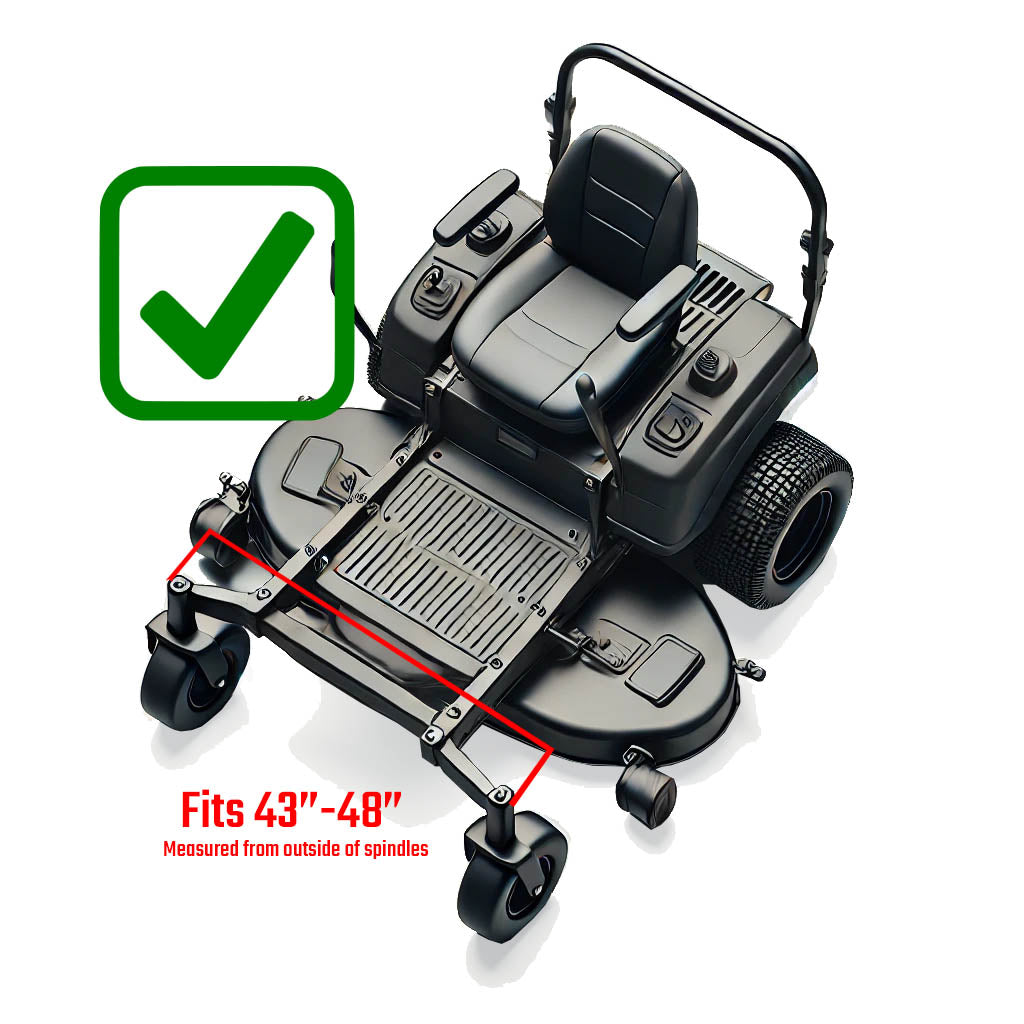

Spindle Width
Measure across the tops of the two front caster spindles, outer edge to outer edge. Use the outer edges of the spindle tops, not the tires.
Must fall within
43″ – 48″
Measurement 02

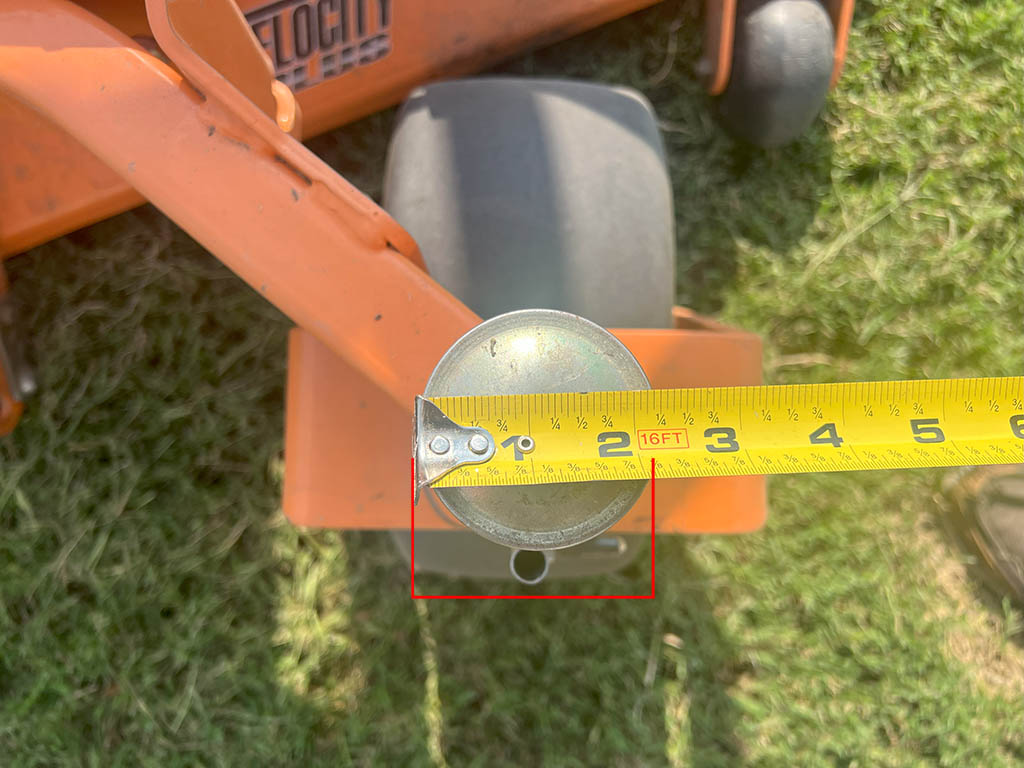

Spindle Diameter
Measure edge to edge across one of the front caster spindles — the round post the caster wheel pivots on — so we ship the correct mount size.
Available mounts
2.25″2.5″2.75″3″
Measurement 03

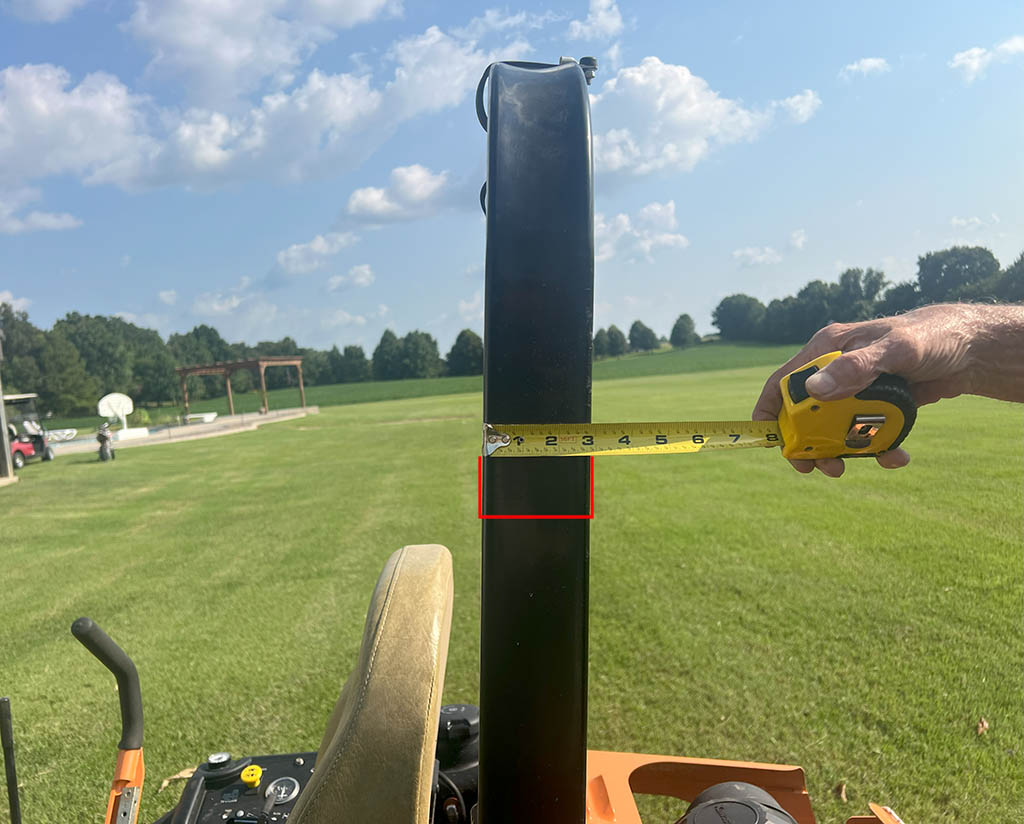

Roll Bar Size
Most roll bars are square or rectangular. Measure the long side and the short side.
Available mounts
3″ × 2″2″ × 2″1.5″ × 3″
Common questions
Why pick make and model over Universal?
We've fitted those mowers ourselves, so the mounts are guaranteed right. No tape measure, no guesswork, no return.
My make is listed but not my model.
Send it to our team above — many unlisted models still fit, and we'll confirm before you buy.
Do I need to drill anything?
No. Every kit clamps to your existing roll bar with the included hardware, in about 15 minutes.
What if I measure wrong?
30-day returns, no questions asked. Or send us your numbers and we'll double-check them first.
